2024+ Ineos Grenadier XL Light Bars - PRO

Name: 2024+ Ineos Grenadier XL Light Bars - PRO
Brand: M&R Automotive
SKU: sku-58145725481120
Price: 764.99 USD
Availability: InStock

M&R Automotive

$764.99 USD

Sale Not Available

Shipping calculated at checkout.

Quantity must be 1 or more

2024+ Ineos Grenadier XL Light Bars - PRO
Fitment
Years: 2024-2026 Ineos Grenadier
Trims: Base, Trialmaster, Fieldmaster, Quartermaster

⚠ NOT COMPATIBLE WITH BULL BAR

Unfortunately, this kit can't be installed on a Grenadier equipped with the bull bar. Our bracket mounts using the same factory bolts the bull bar uses, so the two can't be installed together.

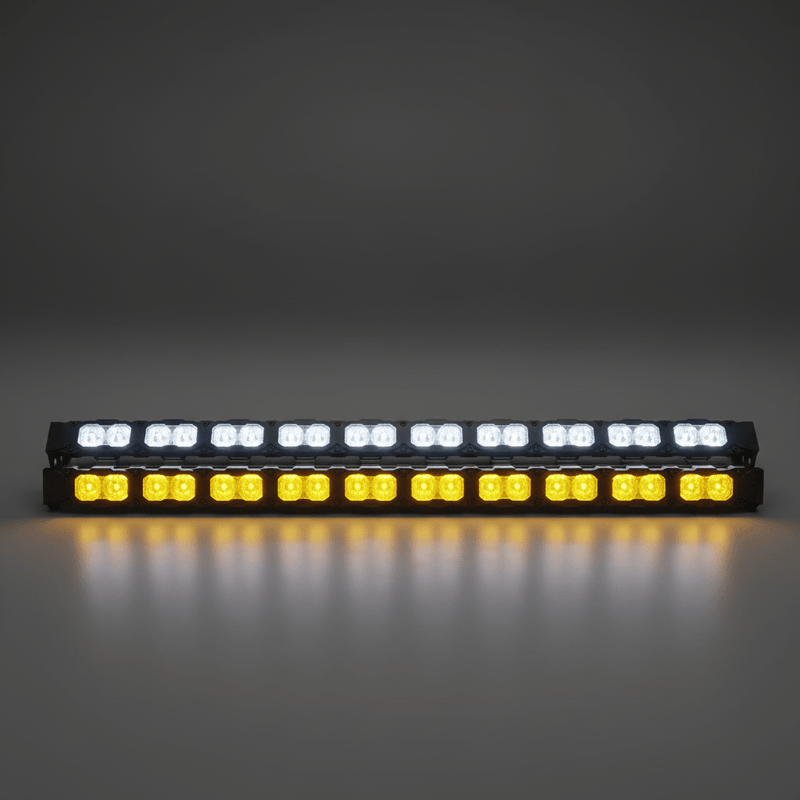

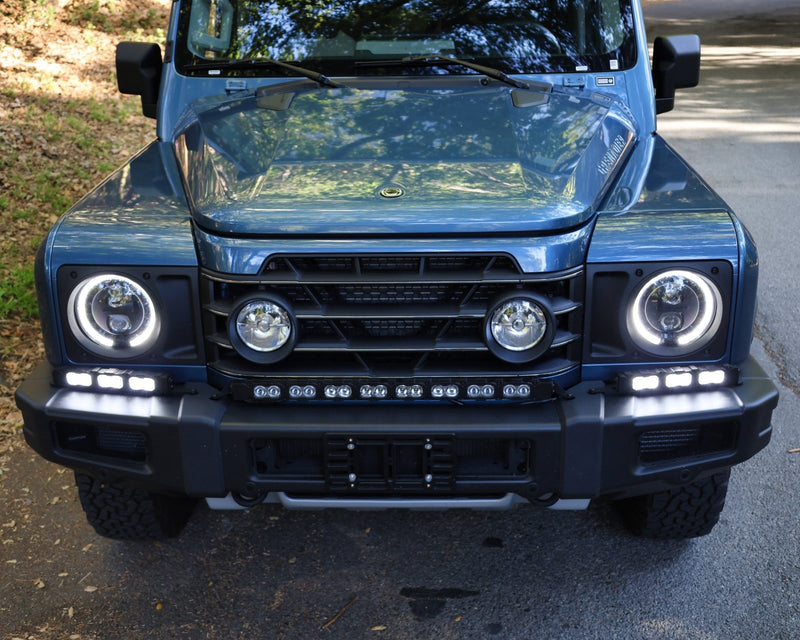

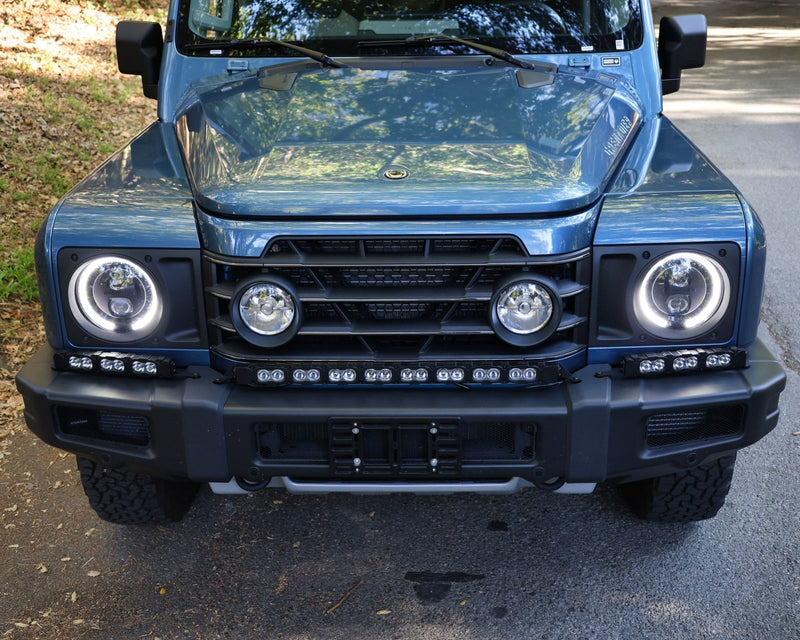

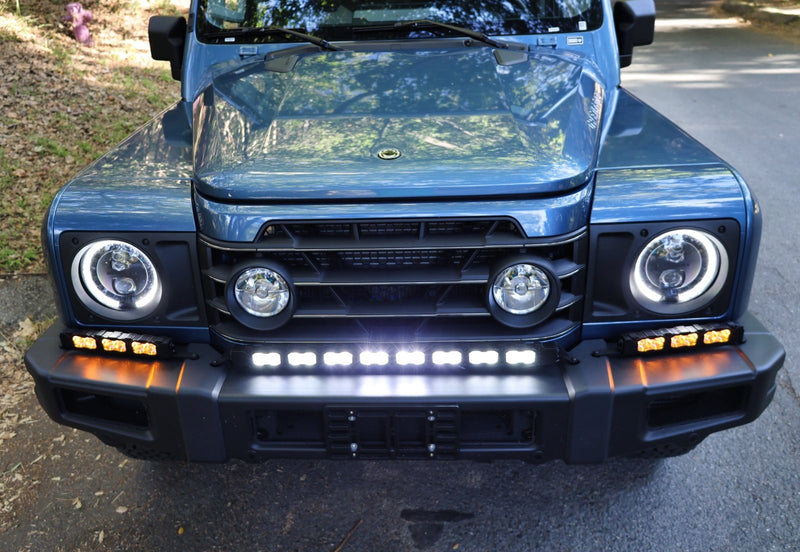

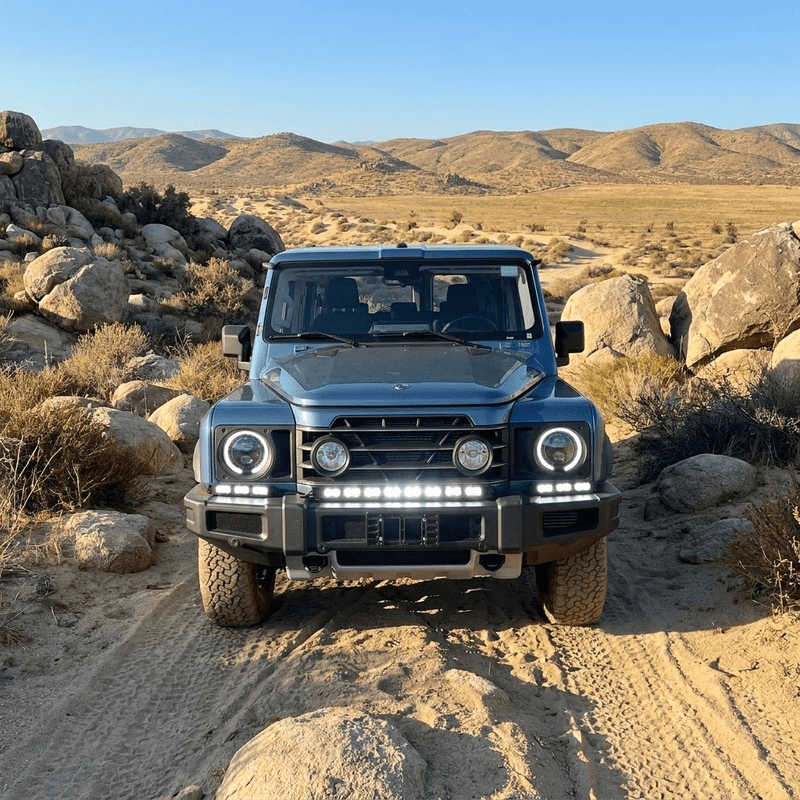

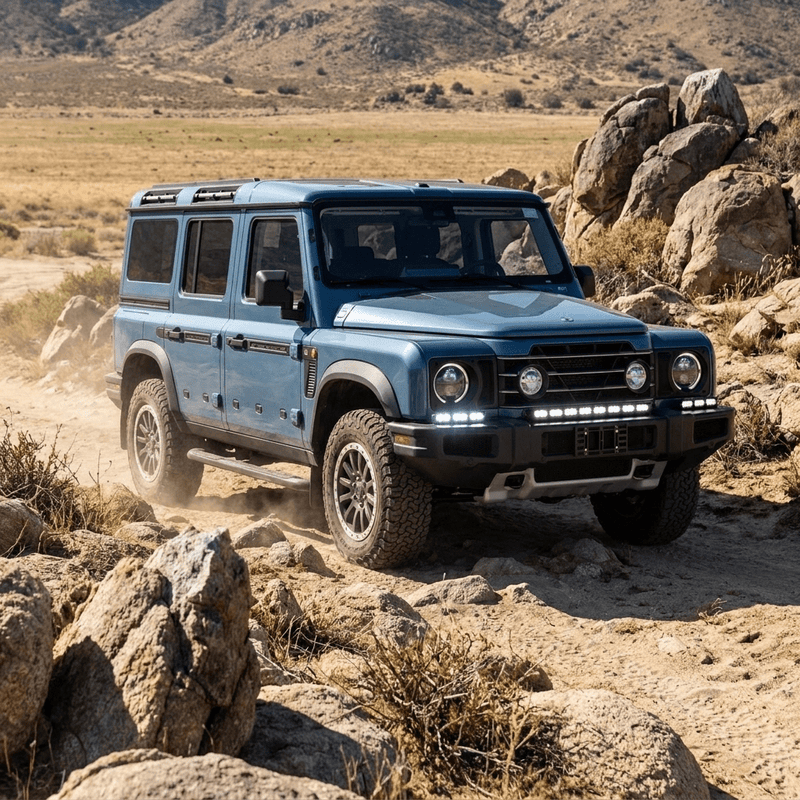

30in LED light bar PLUS (2) extension 12in light bars

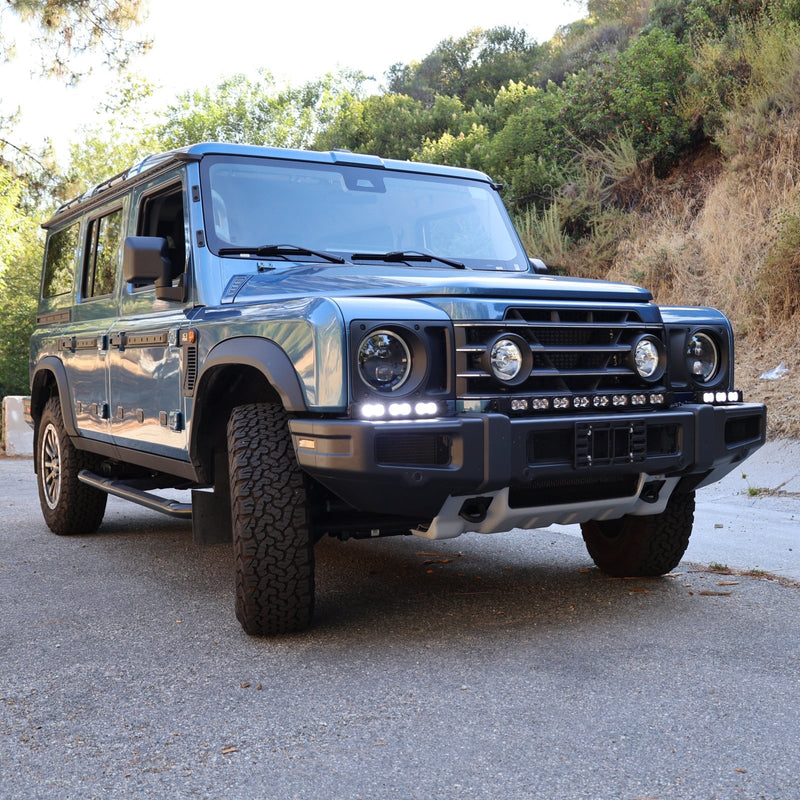

Stays close to the bumper for a sleek, built-in look
Metal bracket is powder coated black

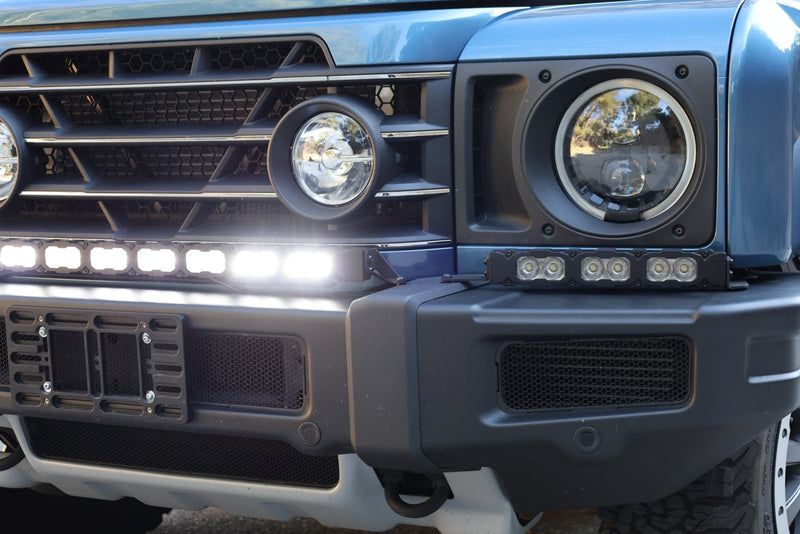

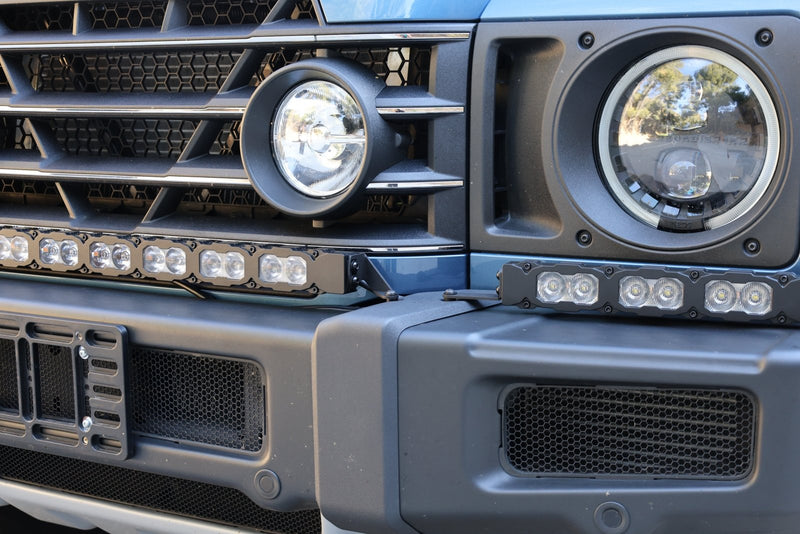

Easy install right on top of the bumper
Don't need to remove bumper or grille, but headlights trim piece needs to be removed
No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware

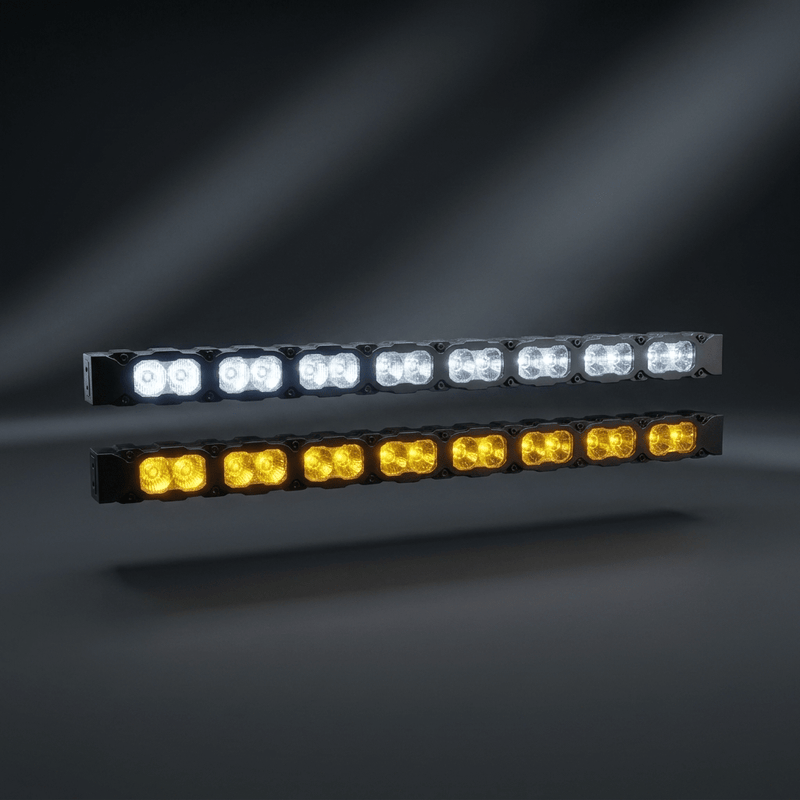

CHOOSE LIGHT OUTPUT COLOR

The PRO light bar uses a Combo Pattern, blending spot and driving optics for a balance between distance and width.

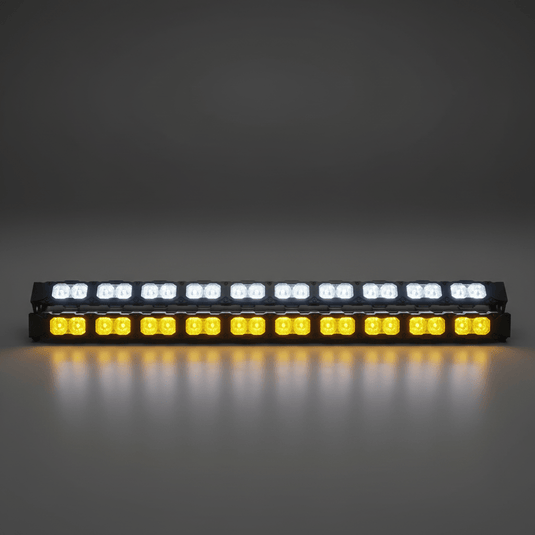

Every PRO bar is dual function — one off-road main beam that runs alongside an amber DRL (daytime running light) backglow.

Your color choice below applies to the 30in center bar only. The two 12in extension bars are only offered in main White light with Amber DRL — no yellow option is available on the 12in bars.

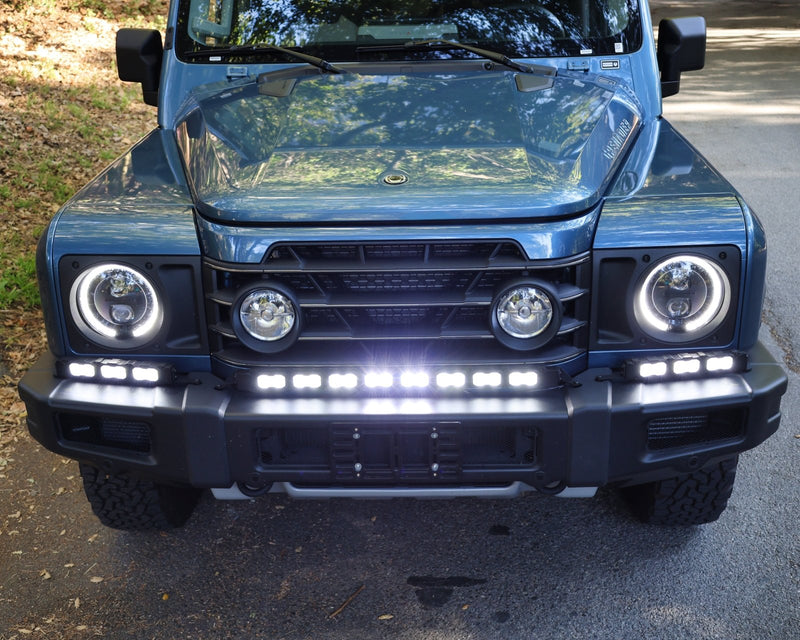

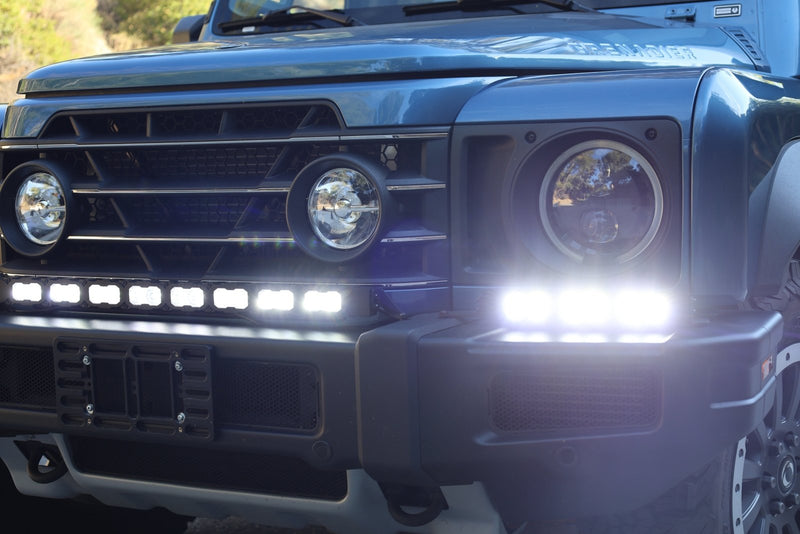

Option 1 — White

30in center bar: White • Both 12in extensions: White

Super bright, crisp white beam with plenty of light for any adventure. Off-road use only — the white beam blinds oncoming traffic and isn't street-legal.

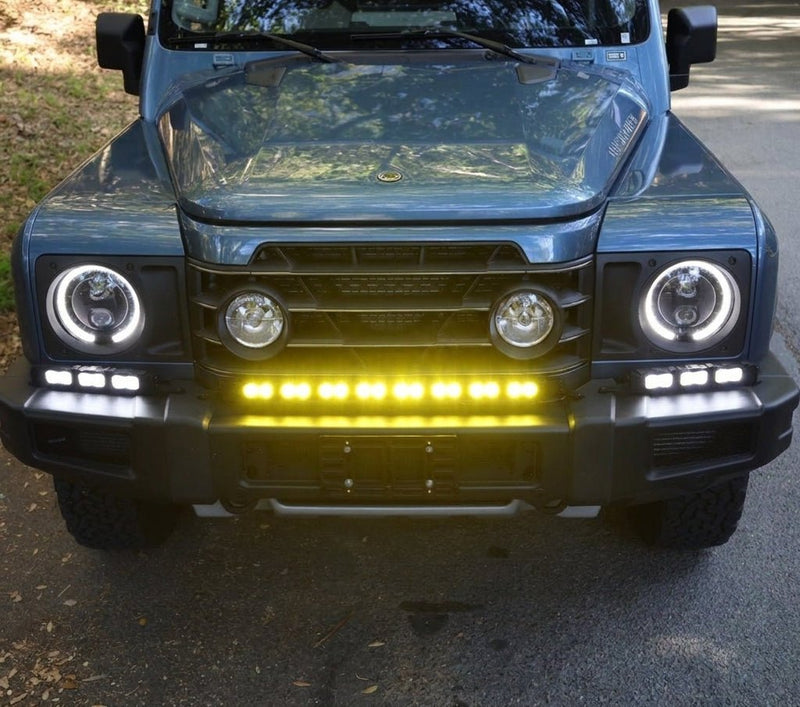

Option 2 — Yellow

30in center bar: Yellow • Both 12in extensions: White

Cuts through dust, fog, snow, and rain far better than white light. Ideal for poor conditions. Off-road use only — the yellow beam blinds oncoming traffic and isn't street-legal.

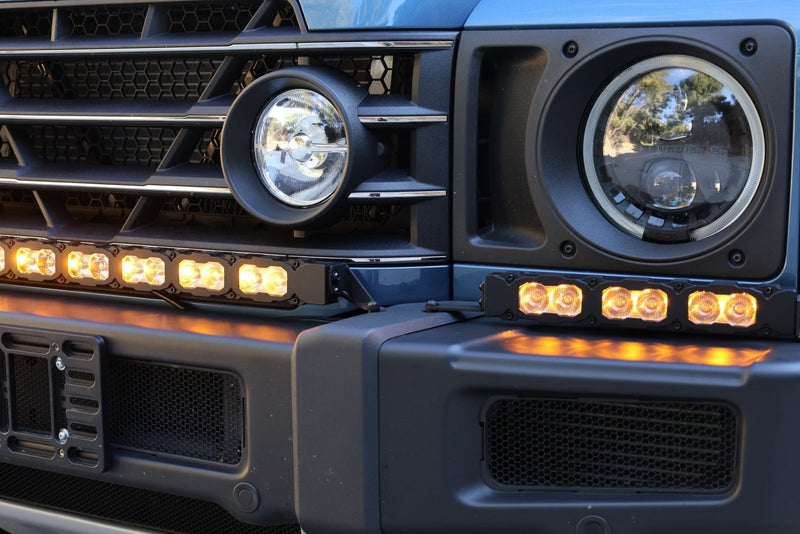

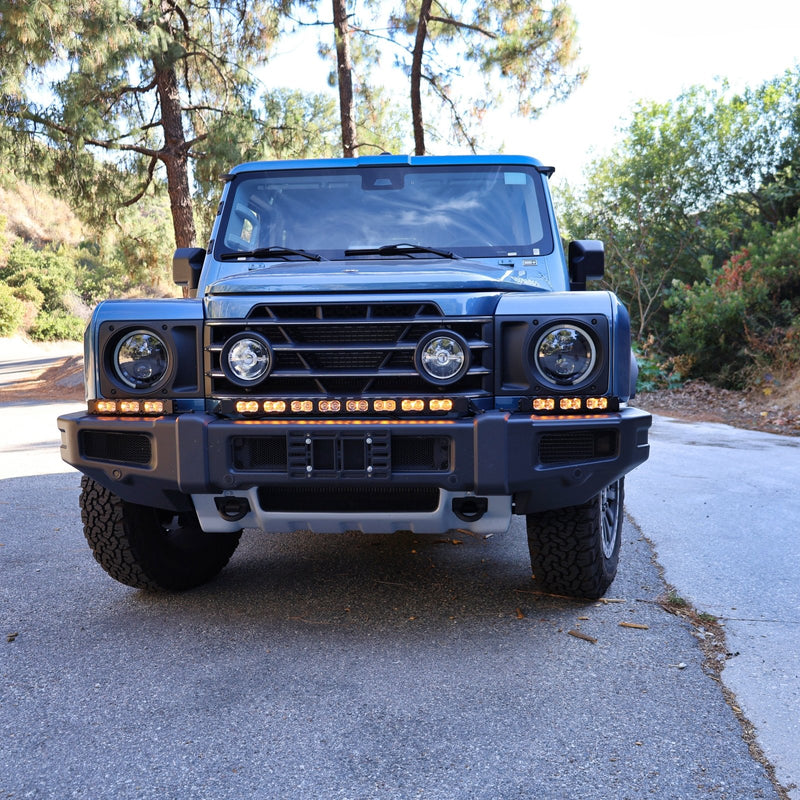

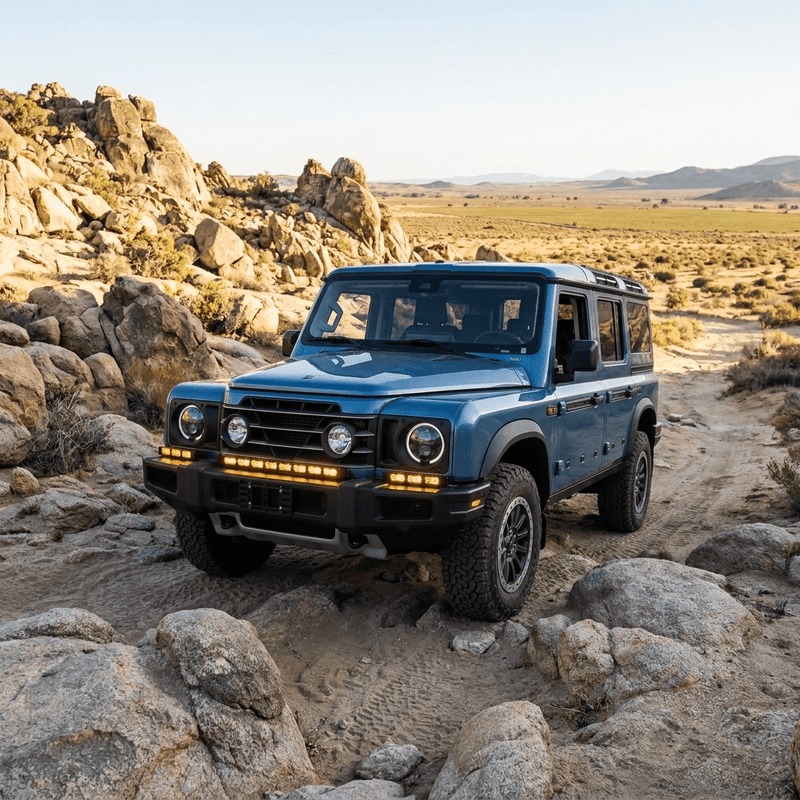

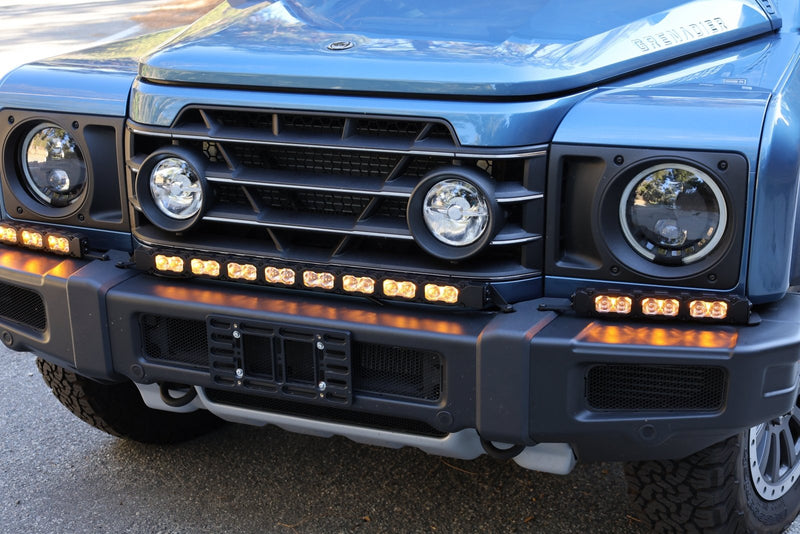

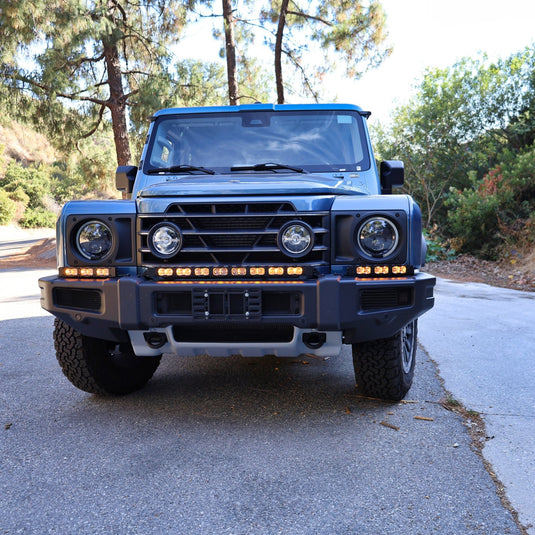

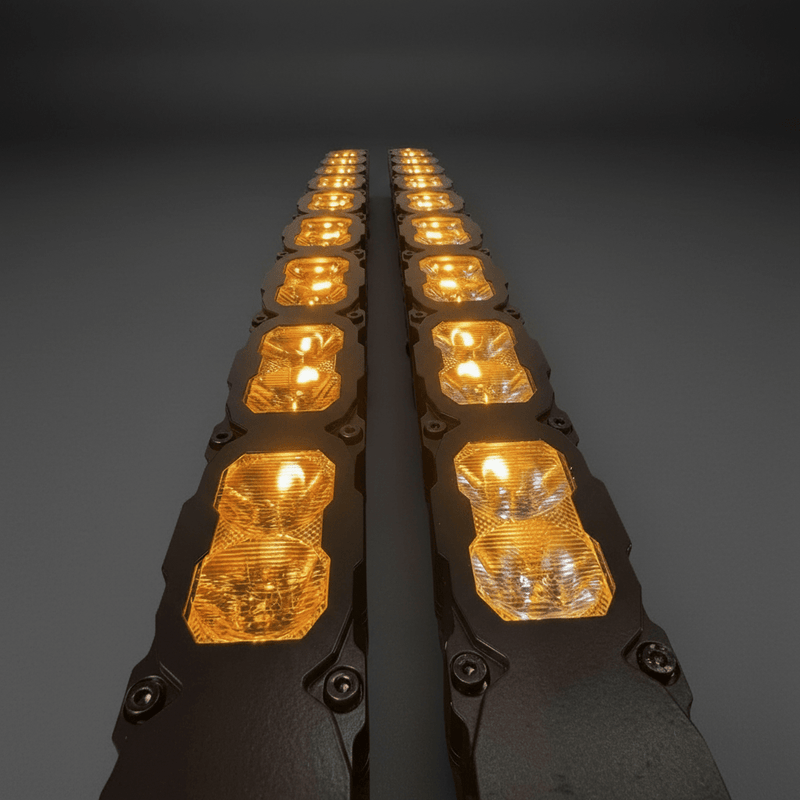

Amber DRL — Every bar in the kit comes with the same amber daytime running light backglow. Doesn't give off much light — just a bold amber glow that makes your vehicle stand out on the road.

AMP DRAW @ 12V · 30in PRO

White7.50A

Yellow7.50A

Amber DRL0.19A

AMP DRAW @ 12V · 12in PRO

White2.90A

Amber DRL0.08A

BUILD QUALITY:

The 30in center bar and both 12in extension bars share the same build:

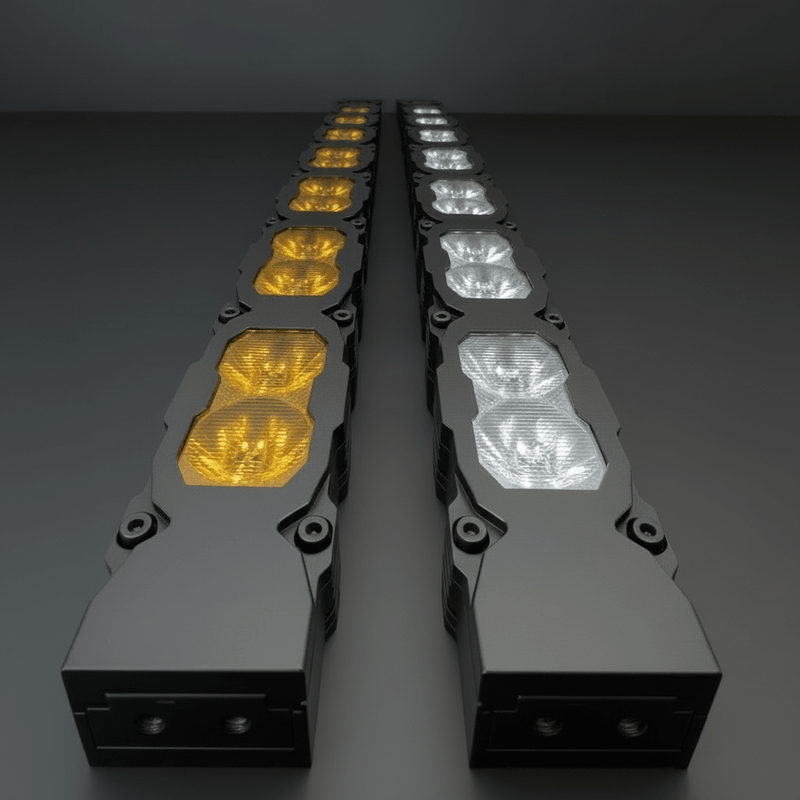

Uses a TIR (Total Internal Reflection) lens, which is different from our regular slim light bar. The TIR lens collects all of the light from the LED and directly leads them to where you need, drastically reducing glare and improving total efficiency.
Higher light efficiency: brighter, longer irradiation distance

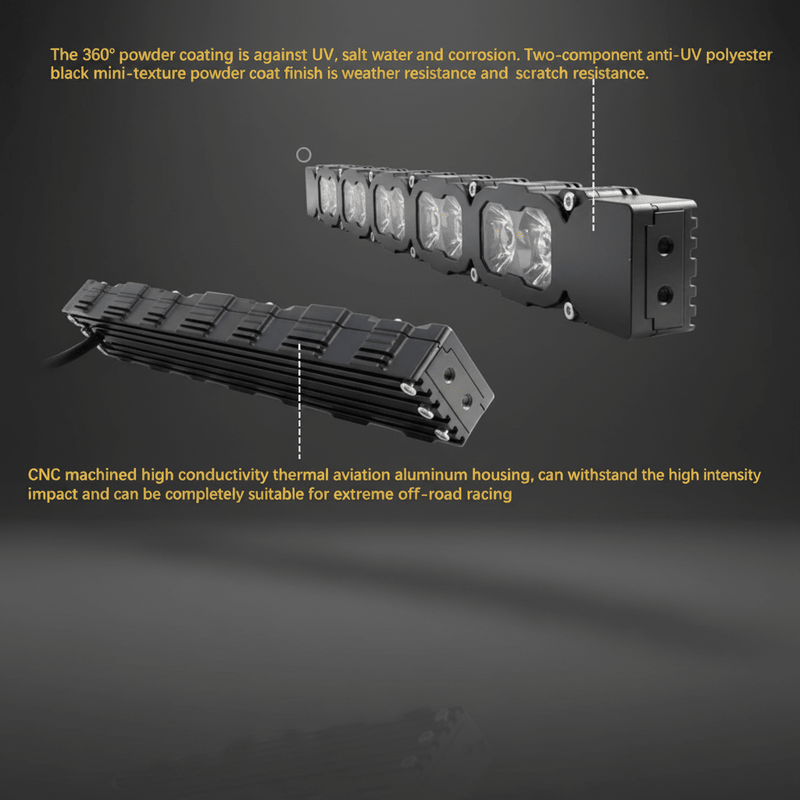

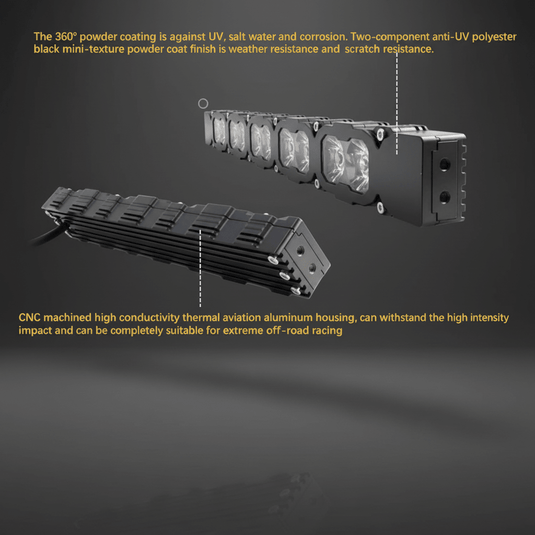

Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading and scratch resistant.
Equipped with thermal management system that automatically adjusts the brightness output according to the external temperatures
Rated for a 50,000 hour lifespan

WIRING

The 40in light bar comes with over 6 ft of wire — enough to reach the engine bay on its own. The two 12in light bars have 18 in of wire each; M&R includes a wiring harness that links them together and extends into the engine bay. From there, connect to your AUX switch wiring. No AUX switches? Add a generic harness (Amazon/eBay) or build your own.

Easier option — our Wireless Harness. Powers your lights with no AUX switches and no wires run through the firewall. Clean, simple install.

Find it here: https://www.fsperformanceengineering.com/collections/wireless-switches
